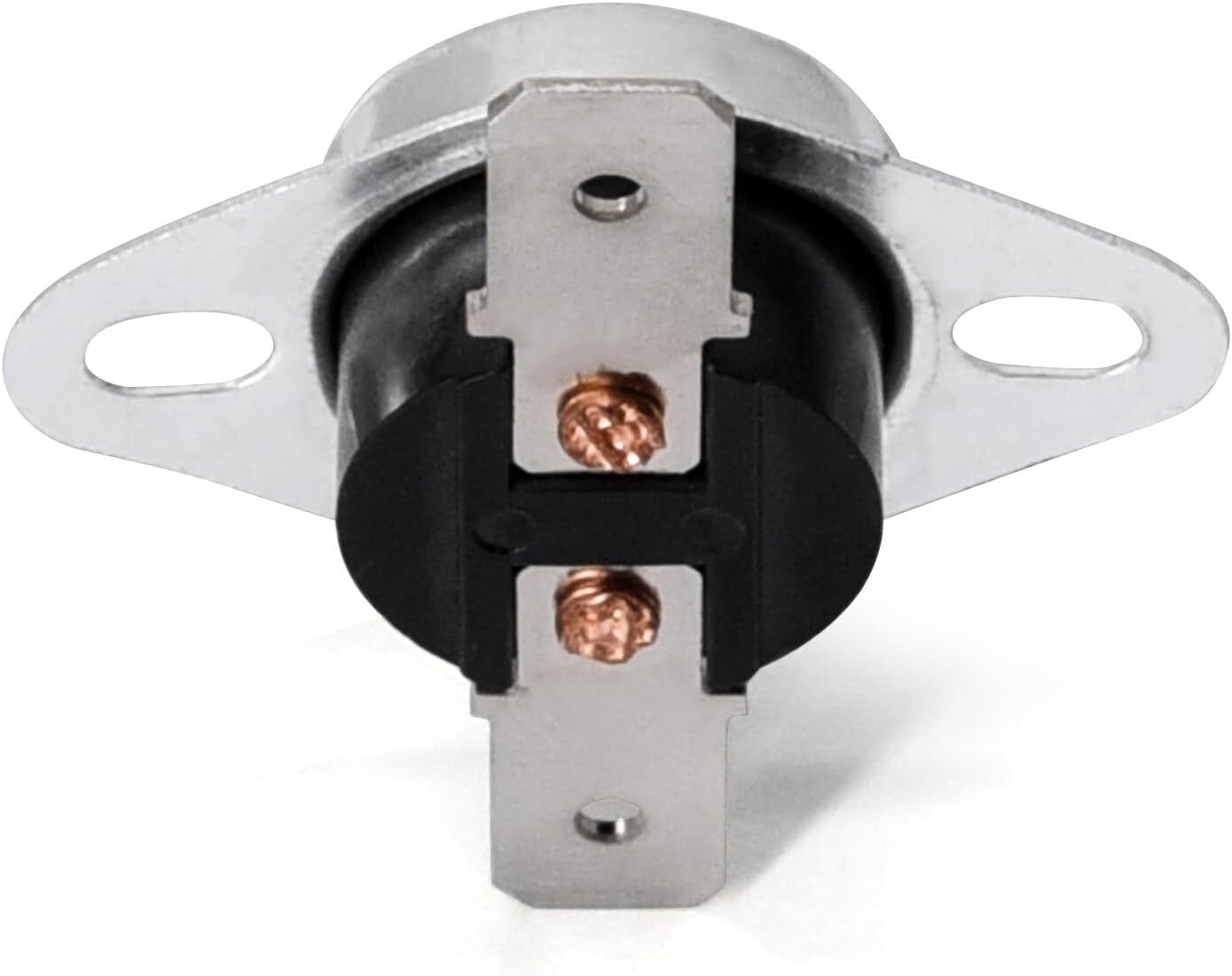

Quadra-Fire SRV230-0900 Snap Disc Switch #2, Classic Bay 1200 1200i

• 【Compatibility】➤ Replacement SRV230-0900 Snap Disc #2 Safety Sensor Thermodisc for Quadrafire Classic Bay 1200, Classic Bay 1200i, CB1200, CB1200i Pellet Stove.
• 【Quadrafire SRV230-0900 High Limit Switch】The SRV230-0900 Snap disc #2 is located on the left side of the appliance behind the access door. There are 2 yellow wires connected to it. This snap disc will interrupt the thermostat circuit (open the circuit) if the metal under the switch rises above 200°F.
• The SRV230-0900 High Limit Switch is normally closed, when an event happens that opens the circuit, the call for heat is cut, the unit will stop feeding, and the fire will subside. When the temperature falls 40°F below the trigger (160°F) the snap disc automatically resets itself and the appliance will start up again so long as the thermostat is still calling for heat.
• 【High Quality】Contact sensor, sensitive and reliable, extremely durable, stable operating temperature, long service life, high-temp snap switch.

Replacement 200 degree snap switch #2 for Quadra-Fire pellet stoves. Fits the following models:

➤ Quadrafire Pellet Stove:

◆ Classic Bay 1200

◆ Classic Bay 1200i

Quadra-Fire part # SRV230-0900

May fit other models, please check your owner's manual for part number compatibility.
